Microscoop Researcher Trino

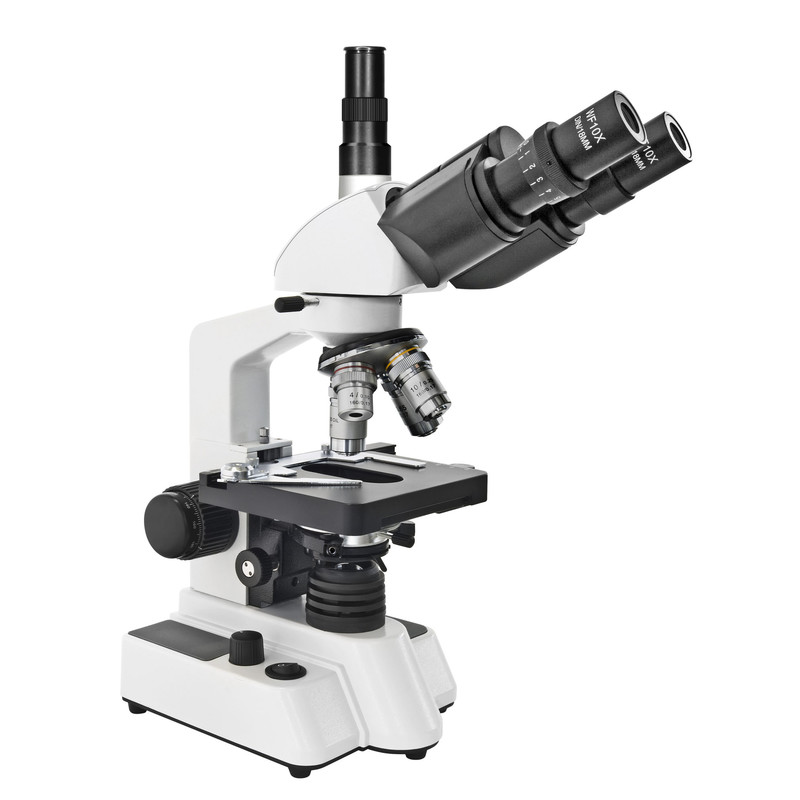

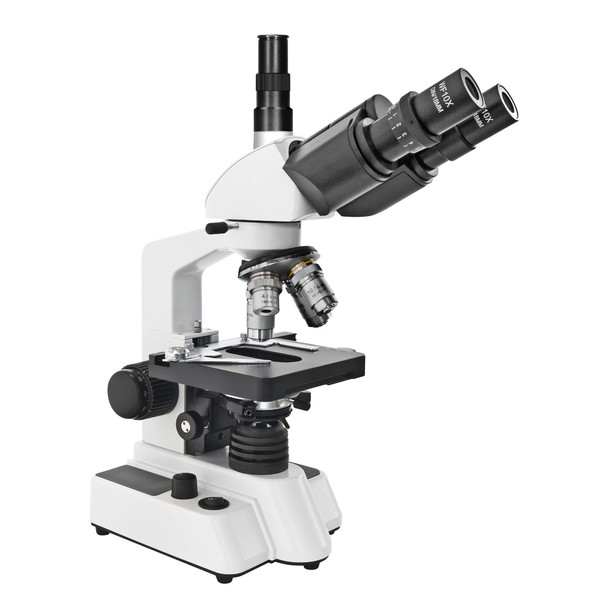

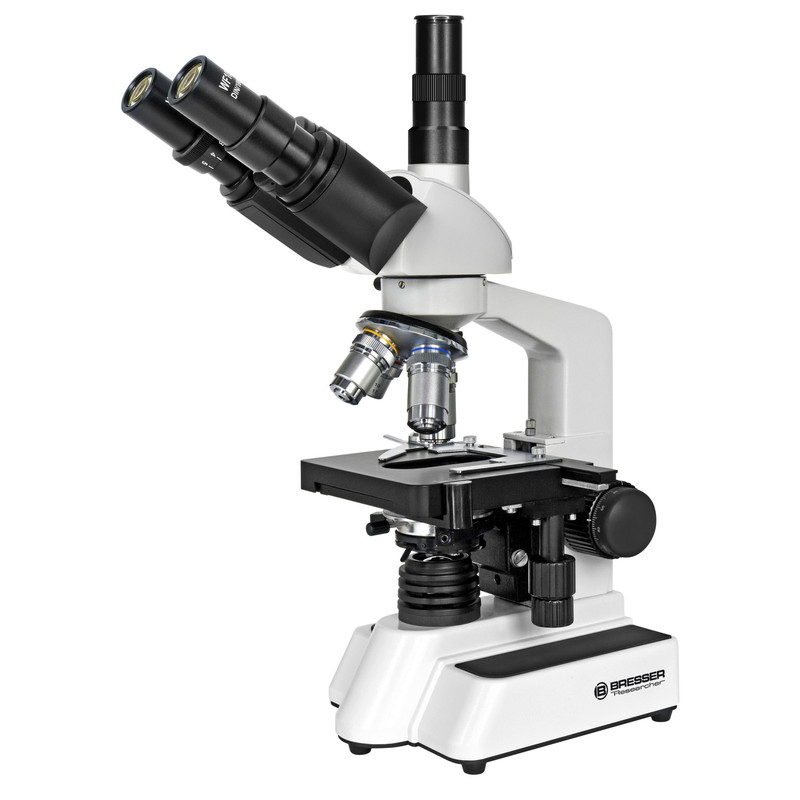

RESSER Trino Researcher II 40-1000x Microscope

The Trino Researcher offers observing fun for an unbeatable price. Based on a solid metal body and equipped with DIN eyepieces and objectives, this transmission-type microscope fulfils even professional demands with its optical and mechanical quality. Many details, for example the cross table for optimal object positioning or the focuser with coarse and fine drive for dead-sharp images. Instead of a binocular head, the Trino Researcher has a trinocular head. With this equipment, the observer can make binocular obseravtions and - at the same time! - take photographs or use a PC eyepiece

Features

• Type: Biological microscope

• View: Trinocular

• Application range: Biology, Education, Teaching, Imaging Solutions, Botany

• Illumination: Halogen

• Level: Intermediate, Expert

• Warranty: 2 years

• Double-lens condensor with iris diaphragm

• Incl. mechanical stage

• Adjustable eye relief

Specification

• Comfortable binocular view, 360° turnable head

• Transmitted 6V/20W

• Magnifications: 1000x, 400x, 100x, 40x

• Illumination: LED

• Eyepieces: 10x

• Eyepiece diameter: 23.2 mm

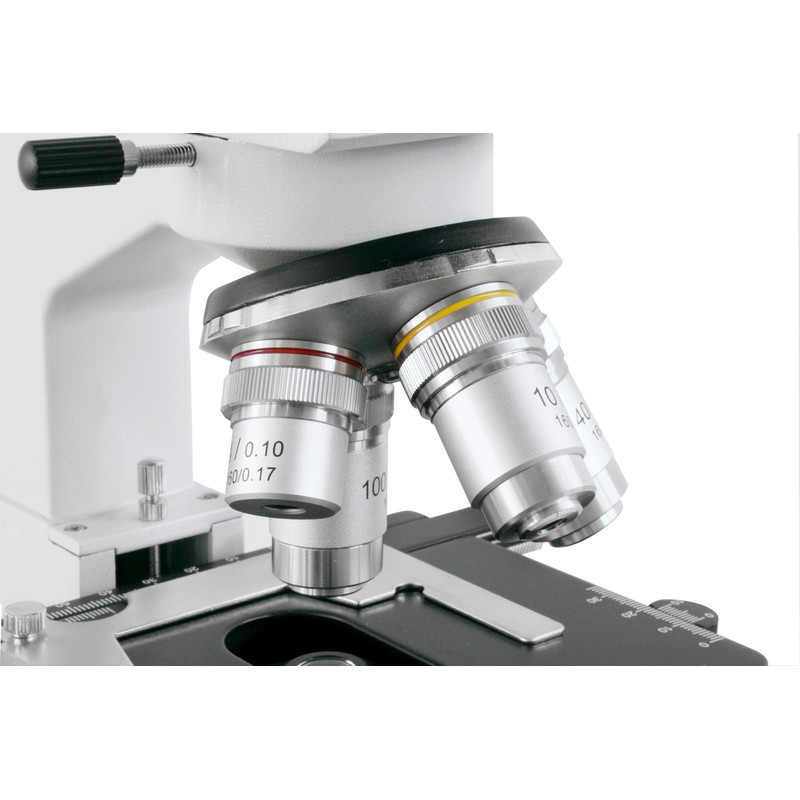

• Objectives: 4x, 10x, 40x, 100x (oil immersion)

• Power supply: 220/240V

Included Accessories

• 4 DIN-objectives

• 2 eyepieces

• Mechanical stage

• Condensor

• Trinocular head

OPTICAL SPECIFICATIONS

Optical design Biological

Magnification in stages 40x/100x/400x/1000x

ELECTRONICS, HARDWARE & SOFTWARE

Lighting5 Transmitted light

GENERAL TECHNICAL DATA

View Trinocular

Product series Researcher

Warranty 5 Years

DIMENSIONS & WEIGHTS

Total length 280 mm

Total width 175 mm

Total height 360 mm

Net Weight total (incl. accessories) 3.8 kg

Eyepiece Barrel Diameter 23.2 mm
