B-290 Serie
Binocular microscope 1000x, N-PLAN objectives, belt drive stage, X-LED illumination
Technical specifications
- Head: Binocular, 360° rotating, 30° inclined.
- Eyepiece: Wide Field 10x/20mm
- Nosepiece: Quadruple, reversed
- Objectives; N-PLAN Achromatic 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25
- Stage: Double layer, 150x133 mm with X-Y 75x50mm moving range
- Focusing: Coaxial coarse and fine focusing
- Illuminator: X-LED3 system with adjustable intensity
- Condenser: Sliding-in, 1.25 N.A. Abbe type with adjustable height and iris diaphragm
- Power supply: 100-240 Vac 50-60 Hz external power adapter 6Vdc output.
X-LED 3 - The future of illumination
OPTIKA is proud to introduce its own revolutionary LED powered illumination system. Developed by our R&D dept. it consists of a new combination of LED and optical technology. A new high-efficiency single chip LED works in combination with a special optical lens, which allows to double the intensity of the light generated by the LED itself. The result is a quantity of light equivalent to the light generated by a standard 50W halogen bulb, but with a colour temperature of 6300K. It means white light instead of the yellow one produced by halogen bulbs. The electrical consumption (3.6W only) shows the high efficiency of the system: same light intensity with less than 10% of the consumption of a standard halogen bulb. Last but not least, the lifetime of our LED is 50.000 hours, instead of 1.500 hours ...!
Heads
Available in binocular or trinocular version. The heads are equipped with interpupillary distance control (48-75 mm) as well as with dioptric compensation. All heads are 360° rotatable and 30° inclined.
Optical system
The optical system has been developed for demanding users; it consists of high quality components which guarantee an high image contrast and an excellent optical resolution. The optical components have been designed and treated with special techniques to prevent the formation of moulds and fungi.
Stand
The stand has a modern and ergonomic design. It is easy to carry the microscope thanks to the large opening behind the revolving nosepiece, to be used as a handle. The opening allows the user to see clearly the objectives and the samples, as requested in discussion groups.
Mechanics
The moving parts are made by means of machine tools with computerized numerical control reducing manufacturing tolerance and increasing the reliability of the instrument. The strict controls on materials and production processes are optimized through the procedures established by ISO 9001:2008 quality system.
Specification

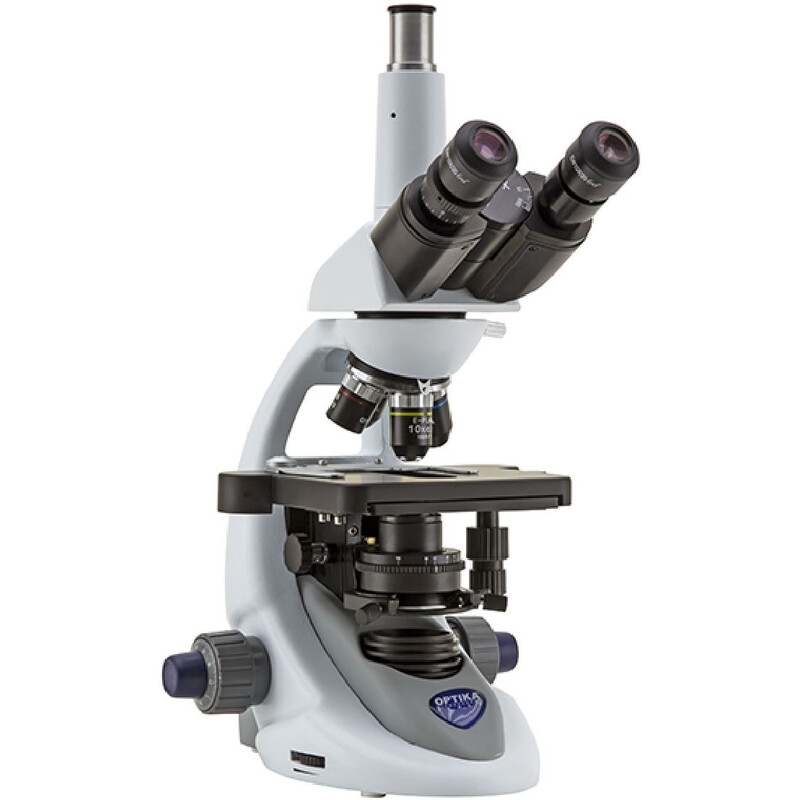

Head: Trinocular
Head Binocular observation head, inclined 30° and rotatable 360°. Diopter adjustment on left eyepiece. Interpupillary adjustment 48-75 mm.
Illumination Light source X-LED type with white LED; light intensity control using a knob on left side of the frame. LED power 3.6W, comparable to a 50W halogen bulb.Color temperature: 6300K.LED average lifetime approx.: 50.000h.Voltage: external power supply 100/240Vac, 50/60Hz, output: 6Vdc 1A.Max. required power: 7W.
Observation Modes Brightfield
Focusing Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Stage Double layer with mechanical sliding stage, size 150x133mm, X-Y movement range 75x50mm, specimen holder for one slide. Belt drive in X direction. Vernier scale on X-Y axes, accuracy 0,1mm.
Nosepiece Quadruple revolving nosepiece, rotation on ball bearings.
Eyepieces Widefield eyepieces WF10X/20 with field number 20
Condenser NA1.25 Abbe condenser, sliding-in, centrable, up-down adjustment by rack&pinion
Objectives DIN N-PLAN
DIN 4x/0.10, W.D. 15.2 mm
DIN 10x/0.25, W.D. 5.5 mm
DIN 40x/0.65, W.D. 0.45 mm
DIN 100x/1.25 (Oil/Water), W.D. 0.13 mm
All objectives are treated with an anti-fungus treatment.
