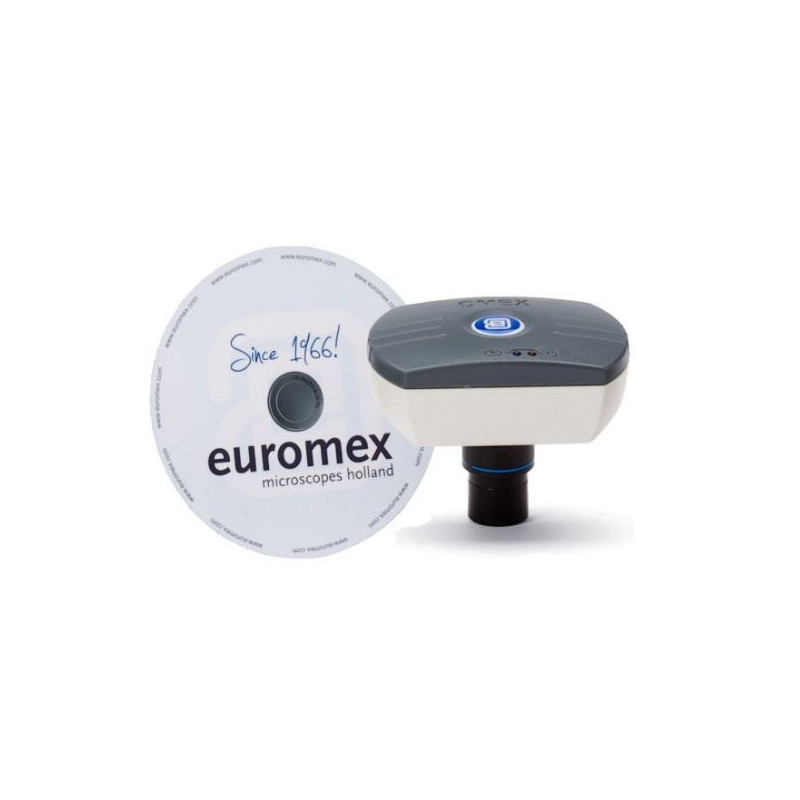

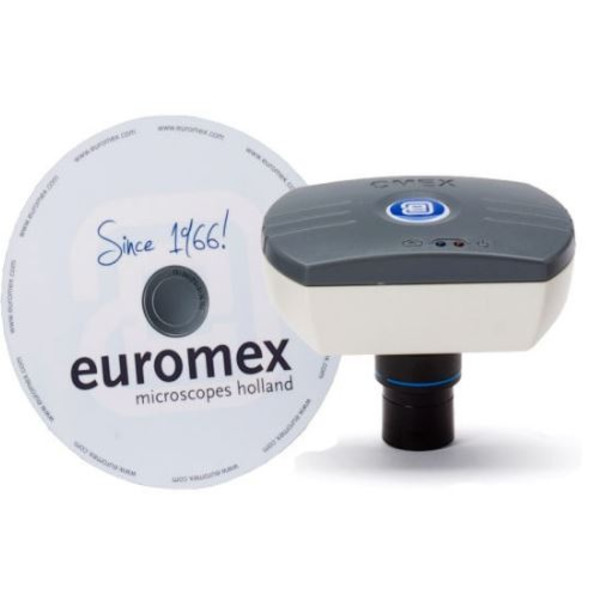

CMEX-1 digital 1.3 Mpix USB-2 CMOS camera DC.1300c
The Euromex CMEX-1 1.3 Mpix USB-2 CMOS camera and ImageFocus 4 analysing software are the perfect solution for modern digital microscopy for teaching, basic industrial applications and for demanding amateurs. Suitable for biological and metallurgical microscopes as well as for stereomicroscopes
Sensor: 1/3" CMOS
Pixels: 1.3 megapixels
Output: High resolution 1280 ×1024 pixels format
Pixel Size: 3.6 µm × 3.6 µm
Frame Rate: @ 1280 x 1024 pixels up to 15 f/s depending camera settings and illumination; @ 640 x 480 pixels up to 30 f/s depending camera settings and illumination;
Color filter: RGB
Mount: C/CS-mount
ADC: 10 bits
Color depth: 24 bits
Signal/Noise ratio: 55 db
Dynamic range: 72 db
Sensitivity: > 1.3 V/lux @ 550 nm
Exposure: Automatic or manual from 1 ms to 300 ms
Interface: High Speed USB 2.0 (480 Mb/s)
Non-compressing real-time image data.High sensitivity camera features, suitable Bright Field, Dark Field, Phase Contrast, Epi-illumination. Very convenient to use, fits a standard 23.2 mm trinocular tube or eyepiece tube. Supplied with USB 2.0 cable

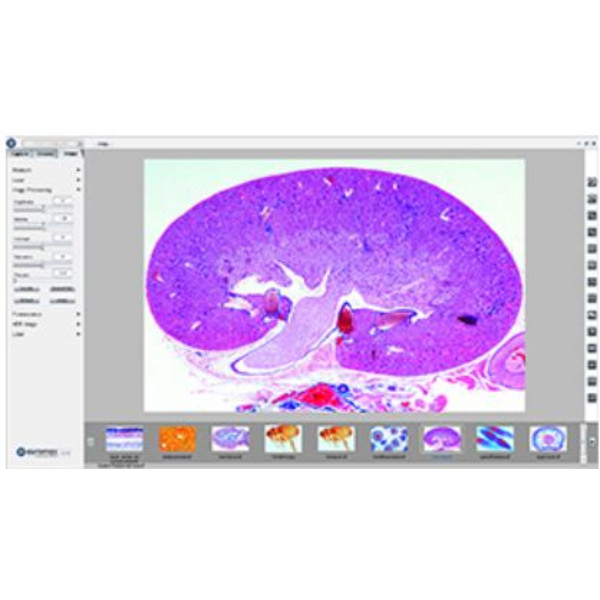

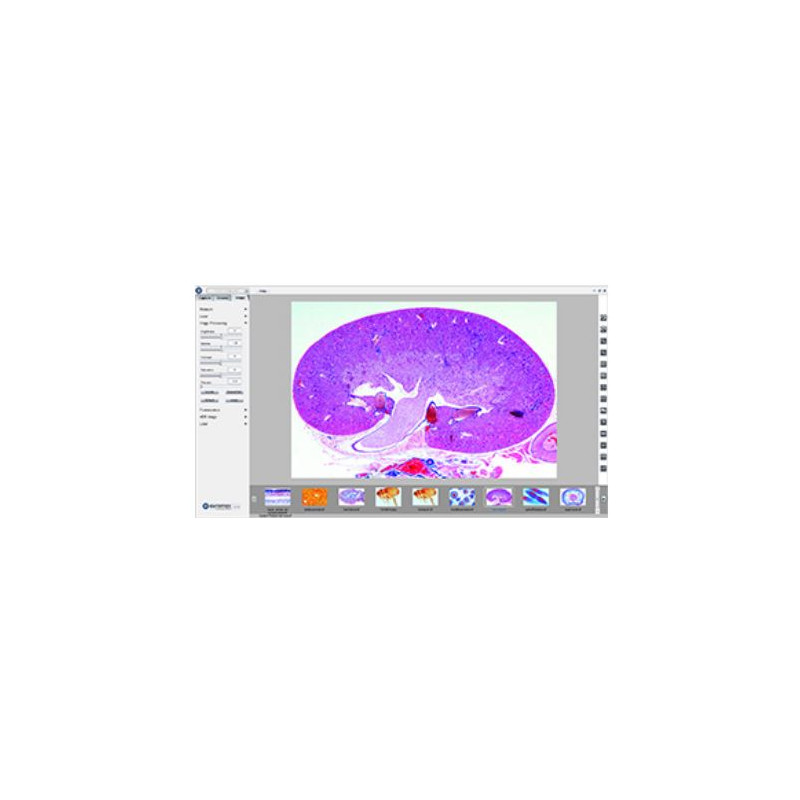

To be used with Euromex ImageFocus 4 software, which can be freely downloaded. The software works solely with CMEX-1, CMEX-3, CMEX-5, CMEX-10, CMEX Pro 3, CMEX Pro 5, sCMEX-1, sCMEX-3 and Euromex cooled CCD color camera captured images.Delivered with 0,35 x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereomicroscopy, 76 x 24 mm calibration 1mm/100 slide, CDROM with ImageFocus 4 software, carton box. Compatible with Microsoft Windows XP, Windows Vista, Windows 7 and Windows 8, 32- and 64 bits.
