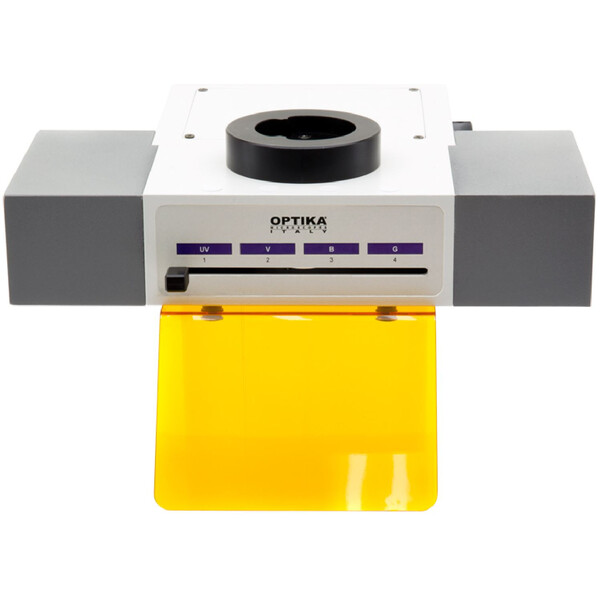

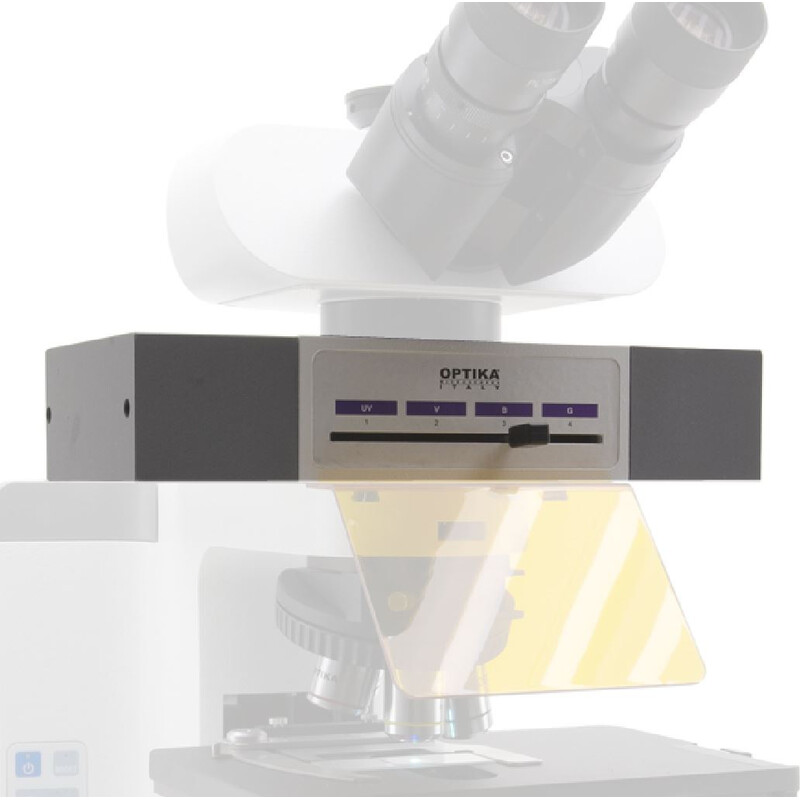

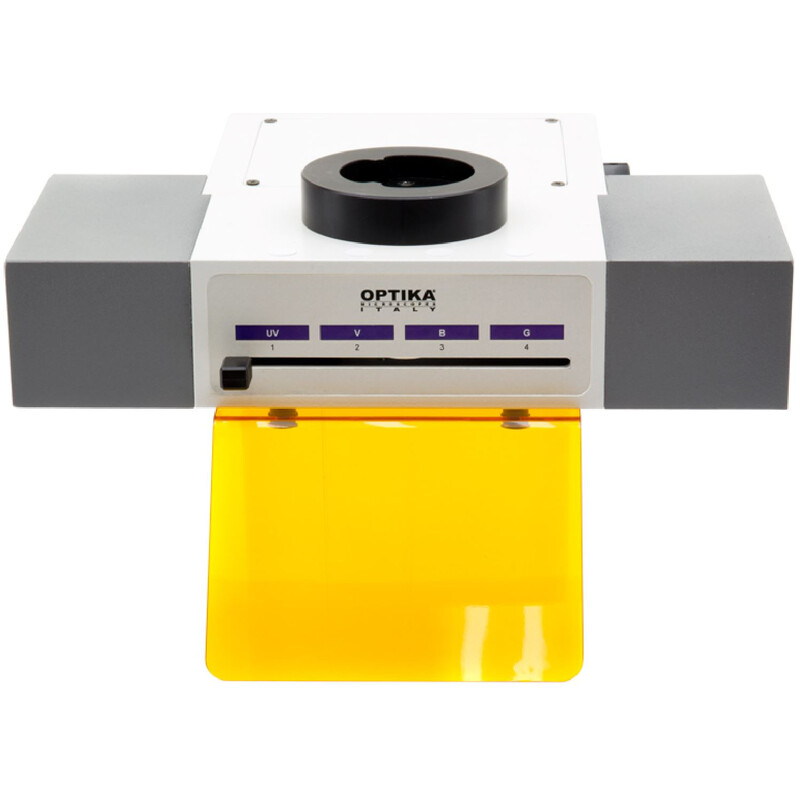

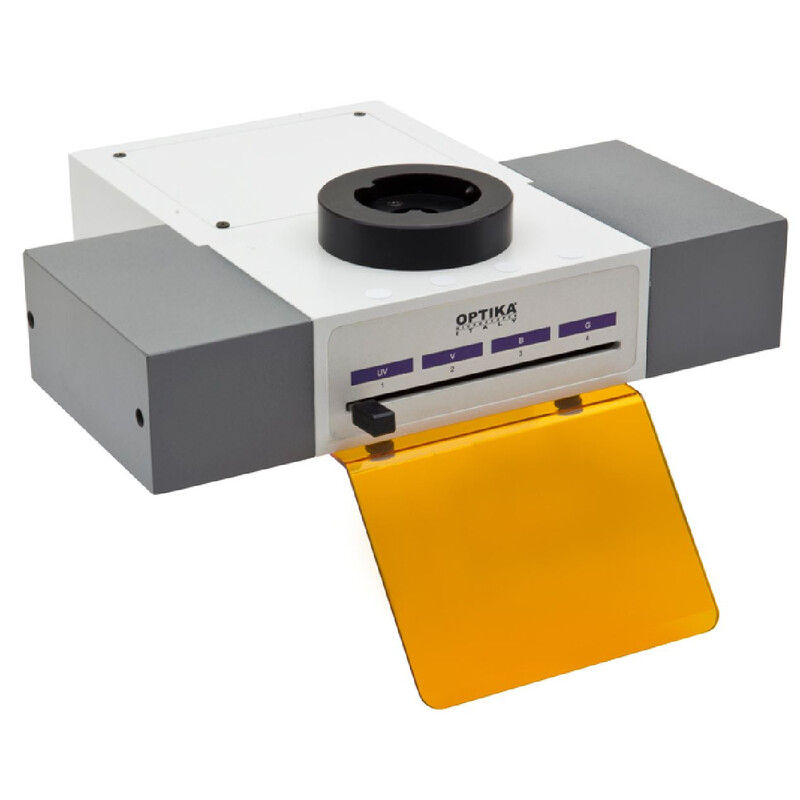

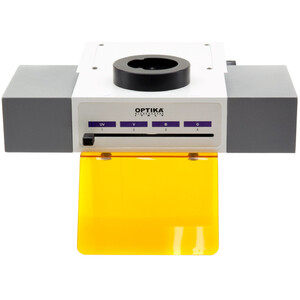

M-1031M, 4-position LED Fluorescence attachment, without LED Fluorescence Filtersets
LED Fluorescence Cubes available (LED + Filterset)
Name: M-1220 – Blue
LED Emission (nm): 460
Excitation filter (nm): 455-495
Dichroic mirror cut-off (nm): 500
Emission filter (nm): 510LP
Name: M-1221 – Green
LED Emission (nm): 523
Excitation filter (nm): 510-550
Dichroic mirror cut-off (nm): 570
Emission filter (nm): 575LP
Name: M-1222 – Violet
LED Emission (nm): 405
Excitation filter (nm): 390-420
Dichroic mirror cut-off (nm): 440
Emission filter (nm): 450LP
Name: M-1223 – UV
LED Emission (nm): 365
Excitation filter (nm): 325-375
Dichroic mirror cut-off (nm): 415
Emission filter (nm): 435LP
Name: M-1224 – Red 1
LED Emission (nm): 623
Excitation filter (nm): 590-650
Dichroic mirror cut-off (nm): 660
Emission filter (nm): 665LP
Name: M-1225 – Red 2
LED Emission (nm): 623
Excitation filter (nm): 595-645
Dichroic mirror cut-off (nm): 655
Emission filter (nm): 665-715
Name: M-1226 – Deep Red
LED Emission (nm): 660
Excitation filter (nm): 623-678
Dichroic mirror cut-off (nm): 685
Emission filter (nm): 690-750
Name: M-1227 – Far Red
LED Emission (nm): 740
Excitation filter (nm): 720-760
Dichroic mirror cut-off (nm): 770
Emission filter (nm): 780LP
Name: M-1228 – Amber
LED Emission (nm): 590
Excitation filter (nm): 582-603
Dichroic mirror cut-off (nm): 610
Emission filter (nm): 615-645
