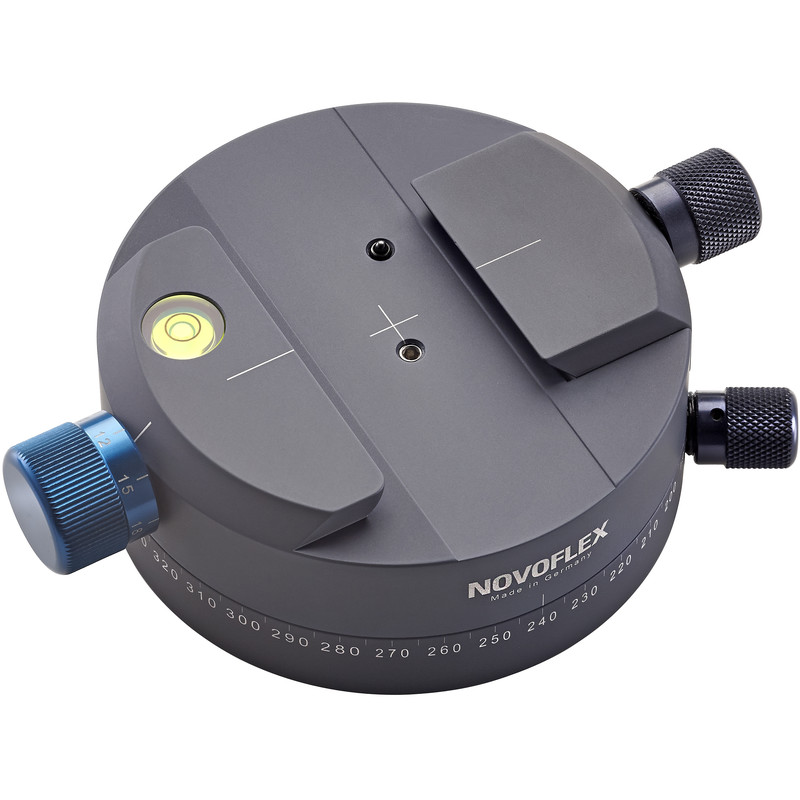

Novoflex PANORAMA=Q PRO
The professional panorama plate (PANORAMA=Q PRO) with variable click-stops for accurate positioning, with quick-release unit (type Q=MOUNT) and patented (pat. pend.) adjustment. With the rotary selector button 8 different click-stop-positions (angle steps) can be set:
The adjustment possibilities are from
- 72 click stops (5°)
- 48 click stops (7,5°)
- 30 click stops (12°)
- 18 click stops (20°)
- 16 click stops (22,5°)
- 12 click stops (30°)
- 10 click stops (36°)
- 8 click stops (45°)
- und stepless (360°)
With the integrated spirit level the panorama plate (PANORAMA=Q PRO) is aligned accurately.
Technical specifications:
- Size: 120 × 86 mm (4.7 × 3.4”)
- Height: 35 mm (1.4”)
- Weight: 635 g (1.4 lbs)
- Tripod Connection: 1/4” resp. 3/8”
