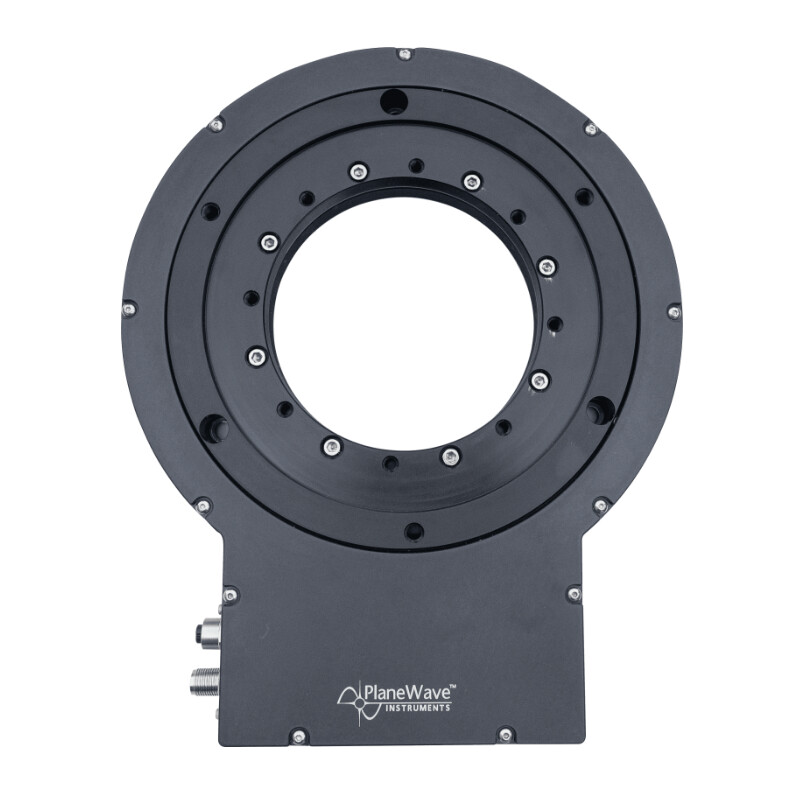

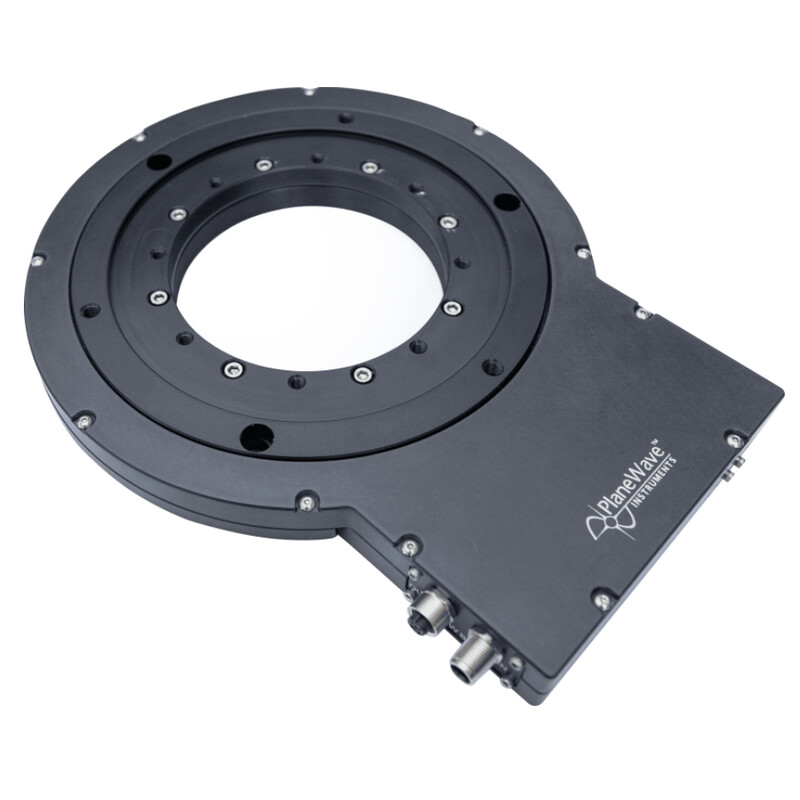

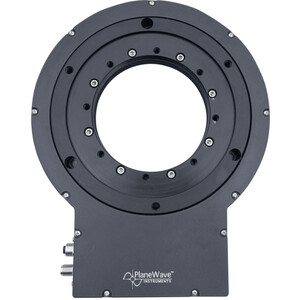

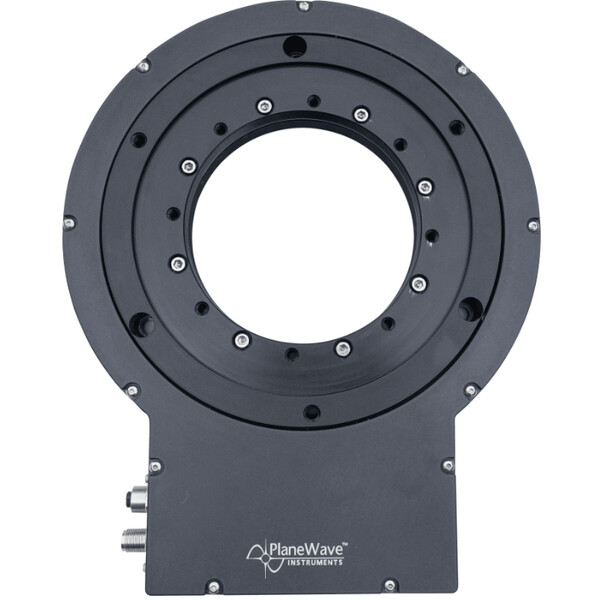

The Series -5 rotator has a clear aperture of 5″ and is only 1.105″ thick. The rotator can travel 700 degrees between mechanical hardstops to prevent cord-wrap.
While designing the new DeltaRho 350 we also wanted to design a new focuser and rotator that would add even more flexibility to our systems. The goal was to create a faster, stronger, focuser and rotator system that had a thinner profile than the IRF90. Our new Series-5 stackable focuser and rotator have achieved just that for users of our CDK700 and smaller telescopes. Both the focuser and rotator offer a clear aperture of 5” and are designed to stack for users that require derotation. For those only needing focusing capabilities, the new focuser also occupies less backfocus, which means more room for imaging train components.
The Series-5 is compatible with the CDK14, CDK17, CDK20, CDK24, and the CDK700.
Electronics: The Series-5 rotator requires the Series-5 Controller.
Software: Install PlaneWave Interface 3 from the Downloads page here. Please also have the most recent ASCOM platform installed on your computer.
