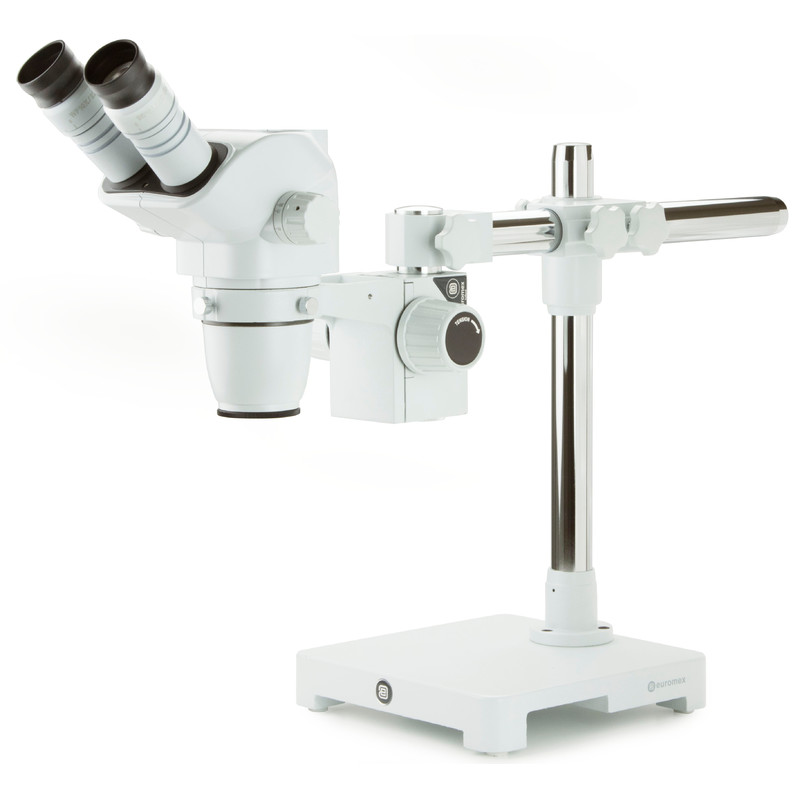

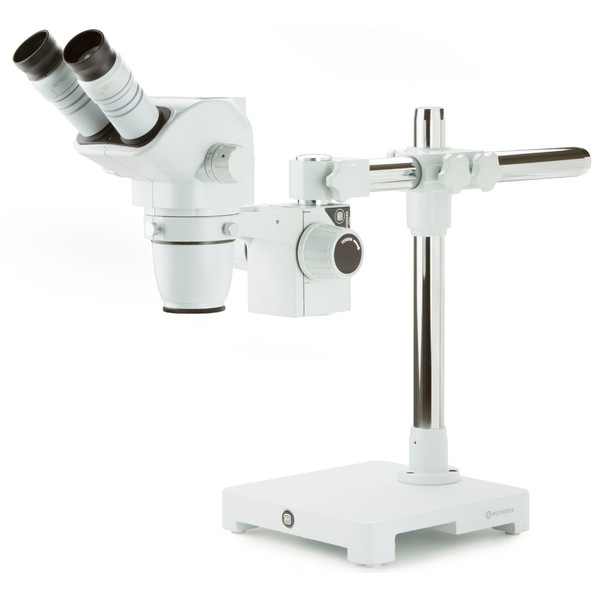

NZ.1902-U-ESD, NexiusZoom ESD, 6.7x tot 45x met universeel AM Arms statief; w.o. verlichting, ESD, bino

Euromex NexiusZoom

The NexiusZoom stereomicroscopes are often used for professional industrial purposes, scientific research and education because of the excellent optical and mechanical properties while very attractively priced

• Standard wide field secured WF10x eyepices with 22 mm field of view
• 45° inclined, 360° rotatable bino- and trinocular stereo heads
• 0.67 to 45x Zoom objectif, parafocal over the entire zoom range with a working distance of 110 mm
• With optionale additional lenses, magnifications from 3.3x to 90 times can be achieved
• 2 read-to-use stereomicroscope models with ergonomic flat stand with 3 W LED diascopic and incident illumination
• 4 configuratieons with universal one arm or double arm stands

NexiusZoom ESD series

Specifications

• Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments
• Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm
• Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm
• Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available
• Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment:Coarse adjustment
• Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately

All optical parts are anti-fungus treated
