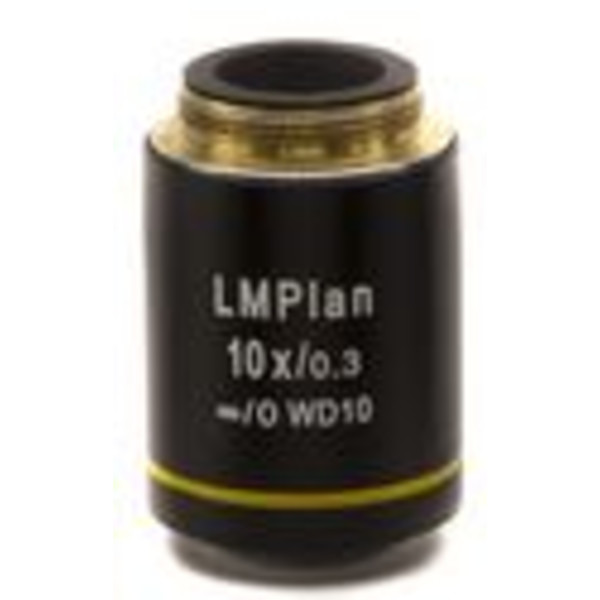

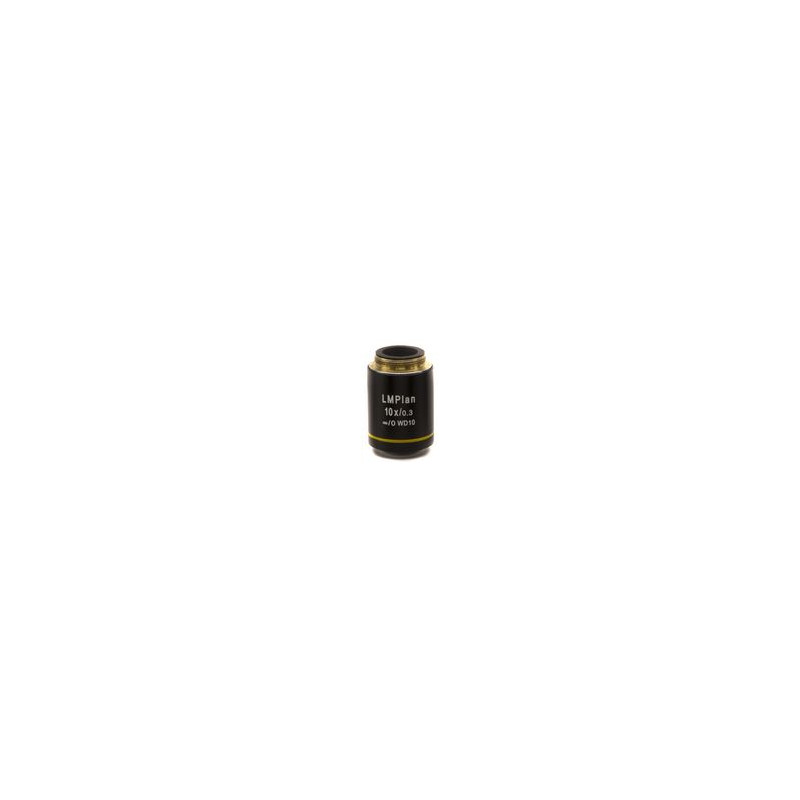

Objectief M-1101, IOS LWD U-PLAN MET 10x/0,30

Model: IOS MET Planachromatic

Description: Objectives for transmitted and incident brightfield observation

• Magnification / Numerical Aperture

• 2.5X / 0.08 (M-1099)

• 5X / 0.15 (M-1100)

• 10X / 0.3 (M-1101)

• 20X / 0.45 (M-1102)

• 50X / 0.55 (M-1103)

• 100X / 0.80 (M-1104)

• Optical Correction MET Planachromatic.
• Long working distance
• Flat field correction for 25 mm Field Number
• planachromatic spherical and chromatic corrections
• 2,5X objective has a built-in depolarizer filter for optimal view with incident light.
• Mechanical tube length IOS (infinity-corrected tube length)
• Cover Glass Thickness 0 mm (no cover glass)
• Working Distance • 2,5X W.D. 11.3 mm

• 5X W.D. 10.8 mm

• 10X W.D. 10 mm

• 20X W.D. 4 mm

• 50X W.D. 7.9 mm

• 100X W.D. 2.1 mm (spring-loaded)

• Screw Thread RMS Standard
• Parfocal Distance 45 mm
