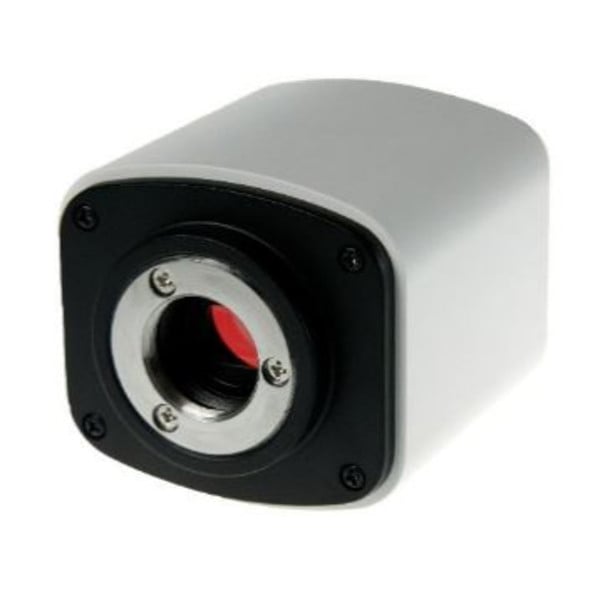

HD-Lite color camera VC.3031 - VC.3031-HDS
The Euromex HD-Lite camera offer the perfect solution to modern microscopy for industry and laboratories where real time images are needed. These HD image quality cameras can be used for biological, metallurgical or stereo microscopes High definition HD1080p CMOS color camera with HDMI and USB-2 interfaces.The real time images generated with this standalone camera provide excellent color rendering at high frame rates, up to 60 frames per second
HIGHLIGHTS
- HD 1080p high definition color cameras
- Real time images directly on TV, monitor or beamer
- Stand alone or used via PC
- Built-in mouse-driven software
- C-mount interface
- HDMI, USB-2 and SD memory card
- Compatible with ImageFocus Plus software

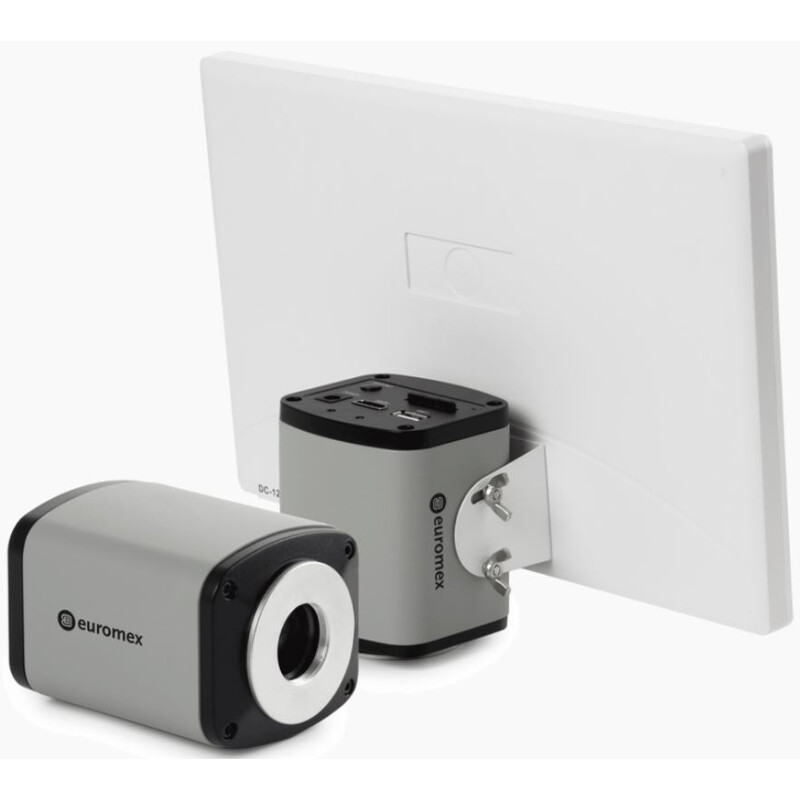

- Available with 11.6” HD screen (VC.3031-HDS)
TECHNICAL SPECIFICATIONS
Sensor HDMI 5.0 Mega pixels CMOS high sensitive sensor (Aptina)
Format 1/2.5 inch, HDTV 1080p (50/60 Hz)
Pixels 2592 x 1944 pixels (capture mode) 1920 x 1080 pixels (live view)
HDMI 15 fps
USB 15 fps
Video1080p pixels video recording mode
Scanmode Progressive scan
Pixelsize 2.2 µm x 2.2 µm
Noise 3D Noise Reduction function
Sensitivity 1V
Whitebalance Automatic/manual
Dynamic range 60 db
S/N max 40.5 db
Interfaces Digital HDMI, USB 2
Storage Standard high speed 8 Gb SD memory card or to USB-2
Camerabuttons On/Off
Mounting C-mount interface
Powersupply External main adapter 100-240 Vac to 12 Vdc/2A
Operation 0 – 60° C, 45-85 % humidity
Storage temperature -20 to 70° Celsius
ON SCREEN CONTROLS (NO NEED FOR COMPUTER)
· Capture images and videos to SD
· Playback images and videos from SD
· Compare images
· Grids
· Digital zoom in/out
· Flip
· Pause
· Camera settings (white balance, color control etc)
Compatibility
To be used with ImageFocus 4 software,
Windows 7 and higher and Capture software (Mac)
Delivery
- HDMI cable
- USB 2 cable
- 12Vdc/2A power supply,
- 8 Gb SD card
- USB-2 mouse
- 0,45x objective.
- Built-in mouse-driven software for image capturing, 1080p HD video recording, image comparison and browsing of captures images and videos.
- Stage micrometer 1 mm divided in 100 parts, 10 µm per division
Product number VC . 3031/ VC . 3031- HDS
