Meer over de serie iScope...
Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.
Euromex introduces a complete new series of iScope® microscopes. These state-of-the-art instruments have been specifically designed for Life Sciences and Biomedical Sciences.
The iScope® is available in different configurations. Thanks to the high resolving power of the objectives and the 3W NeoLed transmitted LED illumination, these microscopes can be used for all kind of demanding applications as well for fundamental research. Please find below a summary of the specifications
- EWF10x/22 mm or EWF10x/20mm eyepieces
- Binocular and trinocular heads
- Quintuple nosepiece
- E-Plan EPL 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion DIN objectives
- E-Plan EPL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
- Plan PL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
- 140 mm x 160 mm stage equipped with integrated 79 x 52 mm mechanical stage
- 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
- Height adjustable Abbe condenser N.A. 1.25
- Coarse and fine height adjustment
- Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply
- iCare sensor for energy saving
- CSS - Cable Storage System
- Models IS.1152-EPL and IS.1153-EPL are supplied with E-Plan objectives for bright field applications
- Models IS.1152-EPLi and IS.1153-EPLi are supplied with E-Plan IOS objectives for bright field applications
- Models IS.1152-PLi and IS.1153-PLi are supplied with Plan IOS objectives for bright field applications
The iScope is also available in a multi-head configuration

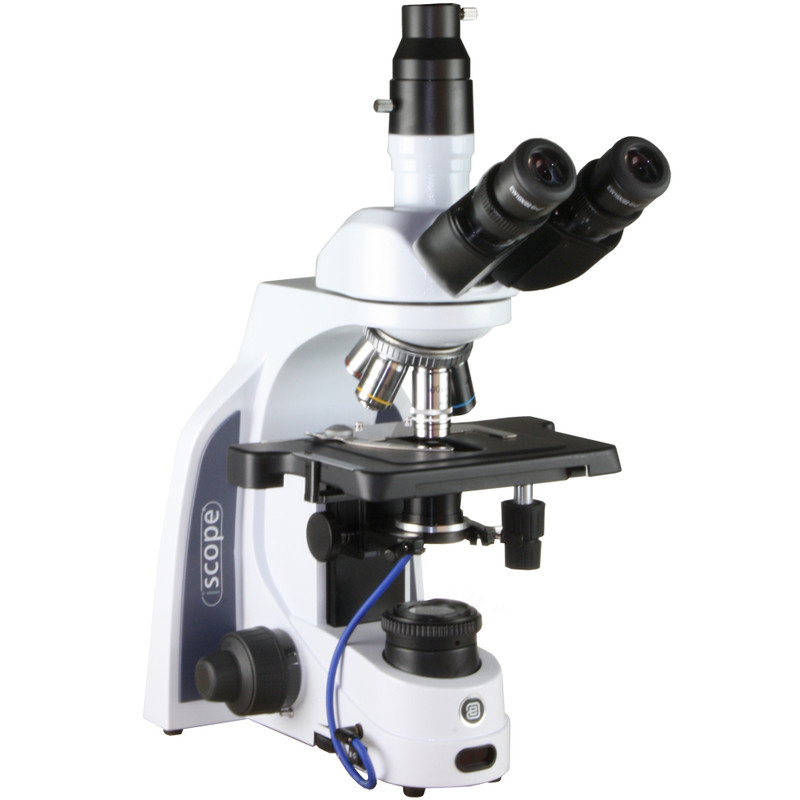

iScope for darkfield IS.1153-PLi / DF
- Eyepieces EWF10x/22 mm; Ø 30 mm
- Head Trinocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on left eyepiece
- Nosepiece Revolving quintuple reversed nosepiece on ball bearings
- Objectives E-Plan EPLi 4x/0.10, EPLi 10x/0.25, EPLi S40x/0.65, EPLi S100x/1.25 oil-immersion, with iris diaphragm, IOS- objectives. All optical parts are anti-fungus treated
- Stage 216 x 150 mm stage equipped with integrated 79 x 52 mm mechanical stage

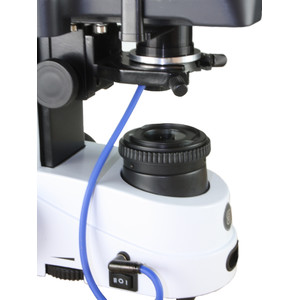

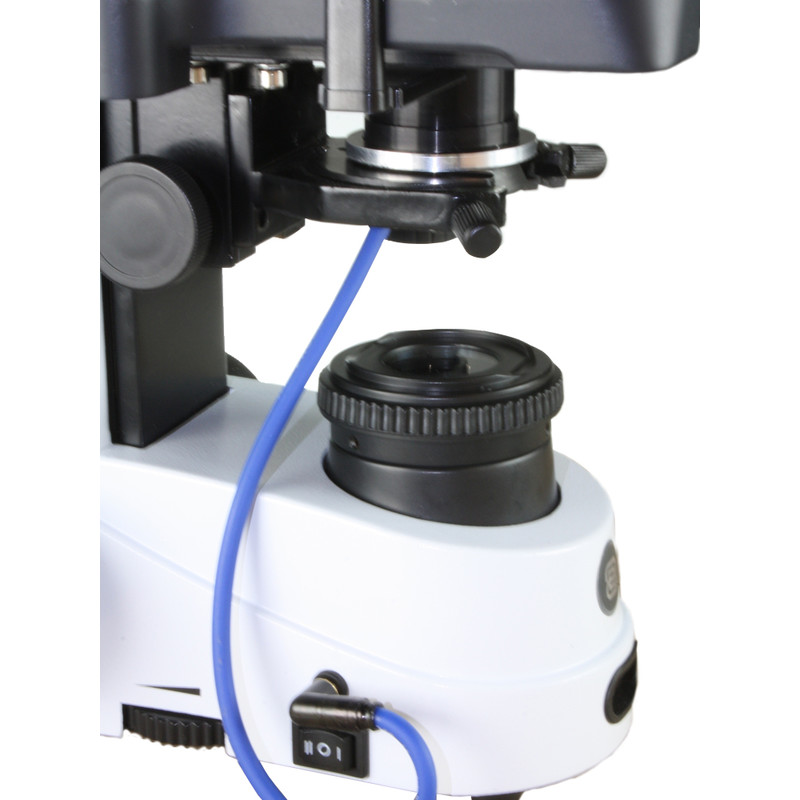

- Condenser Carioid condenser with 5W LED
- Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
- Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ illumination with internal 100V-240V power supply (CE)
- iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
- CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
- Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover
